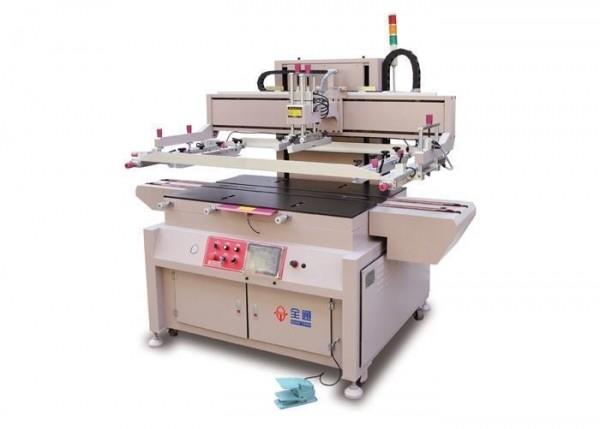

Applications:

Suitable for automotive side glasses screen printing, household appliance glass screen printing,fridge glasses screen printing, furniture colorful glasses screen printing and all kinds of electric appliances glasses screen printing.

Specification:

* Driving mode:Adopt two belts with Taiwan Shilin converter to realize glass fast and stable transportation.

* Position mode:There are three movable positioning block, to satisfy all types of glass position requirement.

* Control system:Adopt Japan Mitsubishi brand PLC to operate the machine.

* Printing head up/down:Adopt good quality clutch gear motor and connecting rod to realize the printing head move up and down. In order to assure stable movement, we adopt motor with double linear guide rail to drive.

* Printing and flooding: Printing and flooding movement are realized by Taiwan motor with good quality synchronous belt. Printing and flooding move up and down are controlled by cylinders. And the pressure is adjustable according to different printing material. And also, the flooding bar’s flooding angle is adjustable from 0-35 degree. For printing, we have single printing and double printing options for customer to choose for operation.

* Printing thickness: There is handle and position regulator on the connecting rod of the printing head up-down device, which can be used to adjust the distance between the printing material and frame.

* Frame holder and fasten devices: The frame is pushed in the holder from the operation side, and the frame fasten is pneumatic, meanwhile, we also have manual fasten screws for the frame to avoid frame movement after working hour without air supplying. We have handles for X, Y and Z directions, to realize front and back, left and right adjustment. And the adjustment range is±10mm.

* Air sucking device: On the table, there are air holes to allow air blowing and sucking during printing and after-printing. During printing, the glass is sucked by the air to assure high printing precision.

CHNTOP is well known for their innovative screen printing equipment solutions and products have been extended from pre-press, printing, post-press to software, screen printing technology and training services. So far, we have the largest production and technical support system of printing line, with a comprehensive and integrated product line, to better serve the screen printing market.

CHNTOP implemented ISO9001 with strict quality management and measuring system.The main products granted CE safety certification with independent import and export right. CHNTOP has granted certificates of Shenzhen High-tech enterprises, The National High-tech enterprises, Shenzhen Benchmark Enterprises.

CHNTOP is committed to provide customers with a full range of high-precision, automatic as well as intelligent screen printing solutions, advanced technology and high-quality service, to strive to achieve an international manufacturer, to become a leader of printing industry, and constantly promote the development of it.

After 20 years of technology accumulation and marketing experience, CHNTOP has explored a suitable road for their own development and for their competition advantages in domestic and international market in the field of screen printing machine. We adopt ” quality , technology , service , innovation ” as our brand policy, and comprehensively promote independent technology innovation. Moreover, we not only establish a scientific career management system and create a favorable environment to attract and encourage the growth of the best talents, but also have a mastered, skillful and experienced researching and engineering team with advanced printing technology to ensure the stable and continuous development of company.

Every day, CHNTOP people are striving to exceed customer’s expectations of products and services because of their innovative values and efforts. CHNTOP grows and develops with u hand by hand in the future.
